SM G652D Fiber Optic Attenuated Patch Cord Simplex LC to SC 10dB
Description
SM G652D Simplex LC to SC 10dB Fiber Optic Attenuated Patch Cord manufactured by ANC International Co., Limited is designed to attenuate an optical signal, usually to keep the detector response in the linear region. Attenuated patch cords can be installed in place of conventional patch cords to provide a constant level of attenuation with a return loss of >50 dB. The attenuated patch cord can be used to replace the conventional cable assembly and attenuator combination. A disadvantage with an extra attenuator is that some reflection loss is introduced into the system. However, this problem can be avoided with an attenuated patch cord. High performance attenuated patch cords are used in telecom applications to attenuate the optical signal in a link. It is a compact, multi purpose passive device designed to operate at the 1310 and 1550 nm wavelengths. Attenuated patch cords can be provided with various connector styles LC, SC, ST and FC to meet customer’s requirements.
Features
Provides the functions of attenuator and cable assembly simultaneously
Low Back Reflection
Attenuation values available: 1 to 20 dB with 1 dB increments
100% Insertion Loss Testing
Insertion loss test wavelength: 1310, 1550 or 1310 & 1550 for SM; 850nm, 1300nm or 850nm & 1300nm or MM;
SC, LC, FC, ST or customized connector optional ;
Cable lengths, cable diameter and cable jacket optional
OEM and ODM customized production
Conforms to the requirements of EIA/TIA standards
Applications
Telecommunication Networks
CATV
FTTP
LAN and WAN Network
Technical Data
| Available Attenuation | 1.0 to 20 dB with 1 dB increments |
| Attenuation Tolerance | For ≤ 5 dB : ± 0.5 dB; For >5 dB : ± 10% of nominal value |
| Back Reflection | >50 dB (UPC) >60 dB (APC) |
| Operating Wavelength | 1310 nm, 1550 nm, 1310 and 1550 nm for SM 850 nm, 1300 nm, 850 nm and 1300 nm for MM |
| Connectorization | SC, FC, ST, LC, or customized |
| Length | 0.5 m up to 10 m ( tolerance +0.1/-0.05 ), 10 m to 20 m (tolerance +0.2/-0.1), Other lengths available on request |
| Durability | 0.2dB Max. Increase |
| Operating Temperature | 20℃~ +70℃ |

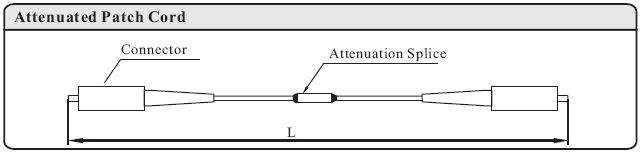

Related Pictures
