3dB 5dB 7dB 10dB LC Fiber Optic Attenuator Multimode 62.5/125 or 50/125 or OM3
Description:
Multimode LC/PC Male-female Fiber Optic Attenuator manufactured by ANC International Co., Limited is used to reduce signal power in fiber optic links by a fixed loss. ANC can produce FC, SC, ST, LC, MU and E2000 Multimode fixed optical attenuators. Fiber Optic Attenuators allow network administrators to reduce optical power in fiber optic applications without reducing optical signal quality. Reducing the optical power minimizes the risk of damaging expensive components, while also extending the life of critical networking equipment. Fiber optic attenuators are recommended to be used for Dense Wave Division Multiplexing (DWDM) and Erbium Doped Fiber Amplifier (EDFA) where the receiver cannot accept the signal generated from a high-power light source.
ANC can produce below fiber optic attenuators
Male to Female fixed plug-type attenuators, such as SC/APC, SC/PC, MM SC/PC, LC/APC, LC/PC, MU/PC, FC/APC etc fiber optic attenuators;
Female to Female attenuators, such as SC/APC, SC/PC, LC/APC, LC/PC, FC Square type, E2000/APC, MU fiber optic attenuator
Variable Fiber optic attenuator, such as adapter-type VOA attenuator, inline VOA attenuator, Collimator VOA, etc
Features:
Reduce the optical power within a fiber optic link
High-power light source durability
Attenuation levels available from 0 dB to 25dB, with standard and premium tolerances, plus custom configurations.
Male - Female Mating Configuration
Environmentally Stable and Reliable
850nm working wavelength for Multimode or customized
Application:
Telecommunication networks
EDFA
DWDM
Optical communication system
Date networks
Specification:
| Item | Male-Female Fiber Optic Attenuators |
| Fiber Type | Multimode 62.5/125 or 50/125 or OM3 or customized |
| Test Wavelength | 850nm or customized |
| Attenuation | 1-5dB, ±0.5dB; 5dB-25dB, ±10% |
| Return Loss | ≥35.0dB |
| Repeatablility | ≤0.10dB |
| Exchangability | ≤0.20dB |
| Mating | 500 times, loss change≤0.20dB |
| Optical Input Power | ≤200mw |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -40℃ to +85℃ |

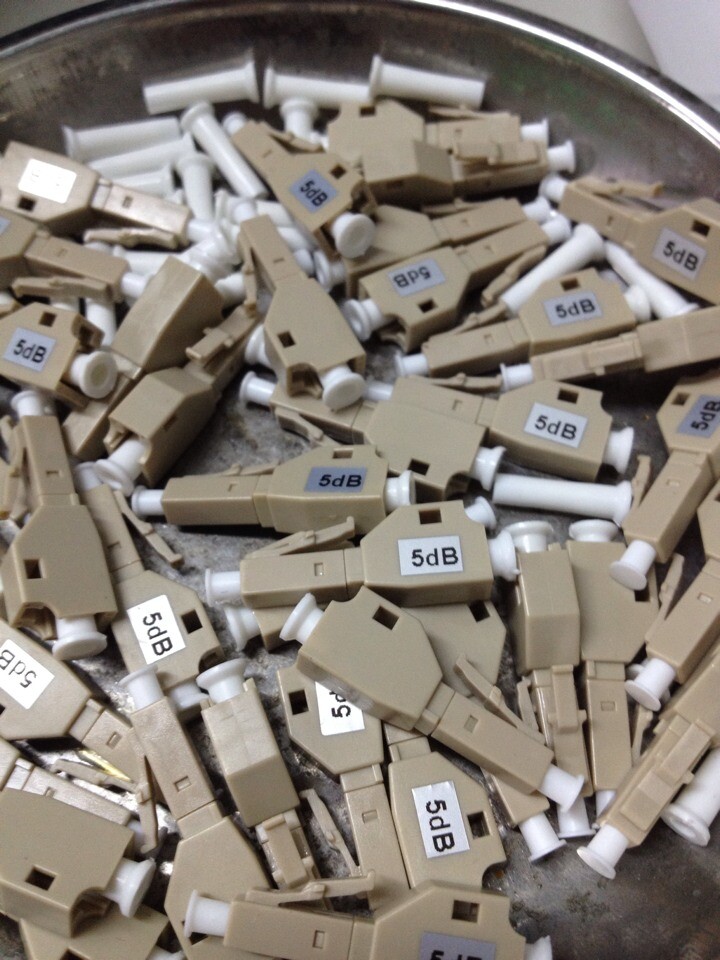

Related Product Pictures
Multimode LC Male-Female Attenuator Drawing

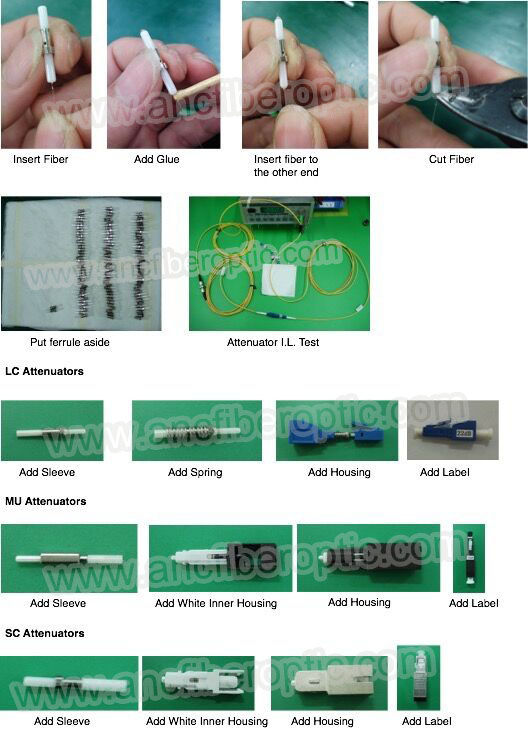

Production Procedure
